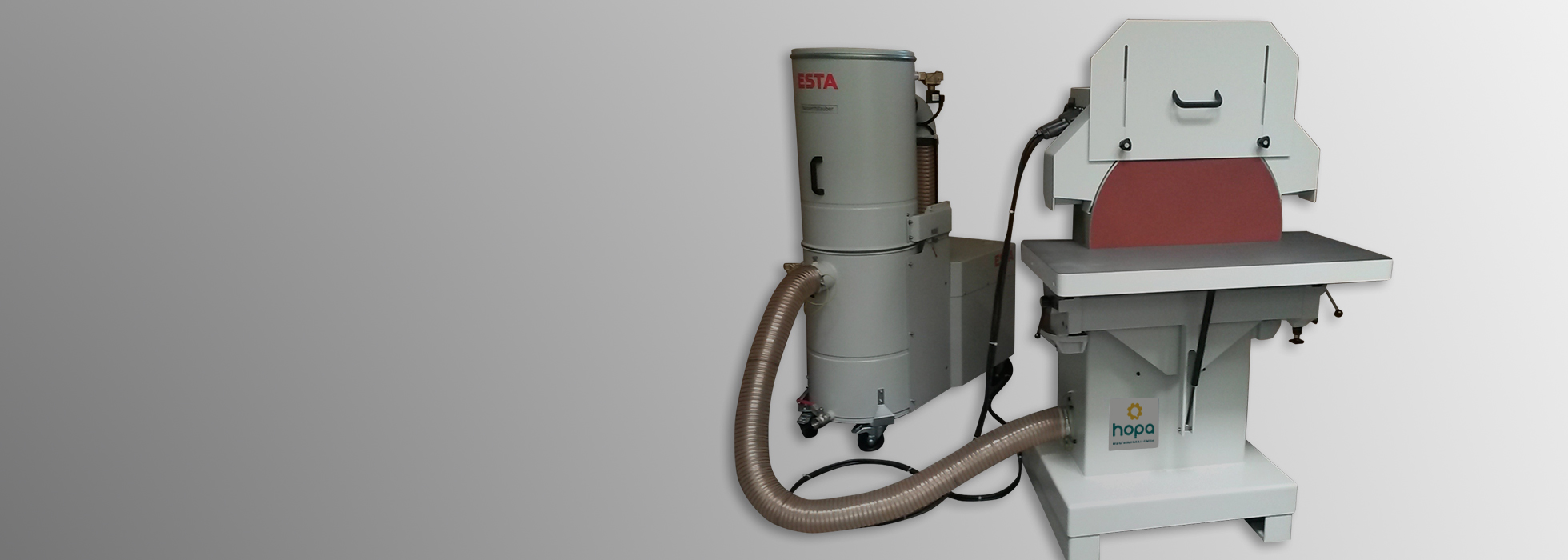

S550-S950 IN EXPLOSION PROOF VERSION
TECHNICAL DATA
WORK AREA
table length |
800 / 950 / 1150 / 1250 mm |
table width |
410 / 470 / 470 / 570 mm |
table width in front of the disc |
250 / 300 / 300 / 400 mm |
table under centre of the disc |
50 mm |
table tilt motion down/up |
45/30° |
tilt motion with fine adjustment |
✓ |
reading accuracy |
6 min |
zero lock |
✓ |
table swivel out |
90° |
table working height |
900 mm |
GRINDING DISC
disc diameter |
500 / 600 / 800 / 900 mm |
disc replacement |
✓ |
MOTOR
voltage |
400 V |
motor power |
4,0 / 2,2 / 4,0 / 4,0 kW |
revolutions per minute |
1.500 / 1.000 / 750 / 750 U/min |
automatic brake (brake force regulator) |
✓ |
EXHAUST SYSTEM
socket Ø bottom |
100 mm |
socket Ø top |
120 mm |
required capacity |
814 m³/h |
flow rate |
20 m/s |
SWITCHING UNIT
main switch |
✓ |
emergency stop |
✓ |
switch for rotation to right / left |
✓ |
DIMENSIONS
space requirement S 550-EX / S 650-EX |
95x85x140 / 110x85x140 cm |
space requirement S 850-EX / S 950-EX |
130x90x180 / 140x100x180 cm |
WEIGHT
S-version |
280 / 315 / 390 / 410 kg |
S650-EX
cylindrical grinding device
S550-S950 IN EXPLOSION PROOF VERSION
CUSTOMISED OPTIONS
OPTIONEN
angle device |
2×45° |
cylindrical grinding device |
30-600mm |
extendable workpiece support |
✓ |
Wet dust extractor / suction device |
✓ |
special paint |
✓ |
FURTHER INFORMATION
WELL THOUGHT-OUT CONSTRUCTION
MACHINE TABLE
The machine table is made of cast iron and is mounted on both sides. The grinding wheel is also enclosed laterally by the machine table. This makes it easy to grind angled parts.
The machine table is positioned 50mm under the grinding centre, which creates a larger working area. An extendable workpiece support is available as an option.
ANGLE DEVICES (OPTIONAL)
Version 1
The angle device can be moved in a groove over the entire length of the machine table. It can be adjusted 45° on both sides.
Version 2
This angle device is mounted at the front of the machine table and has a quick lock for the most common angles. It can be moved over the entire length of the table and is adjustable 45° on both sides.
SWITCHING UNIT
A brake force control is built into the circuit as standard, in accordance with the regulations in EU countries. The operating switch can be used to adjust the clockwise or anticlockwise rotation of the grinding wheels. If desired, the revolution per minute can also be adjusted steplessly.
The drive motor, as well as the elements of the switching unit meet the specific requirements for the explosion protection.
TILTING DEVICE
The tilting device allows infinitely variable adjustment of the machine table (45° downwards as well as 30° upwards). The tilting is supported by a shock absorber. The reading accuracy is 6 minutes.
The distance between the grinding disc and the machine table remains constant.
S550-S950 IN EXPLOSION PROOF VERSION
MORE DETAILS
angle device at front of table
tilting segment with handwheel
